Chapter 3 Community Profiling Part I

3.1 Microbes were the first life forms on this planet

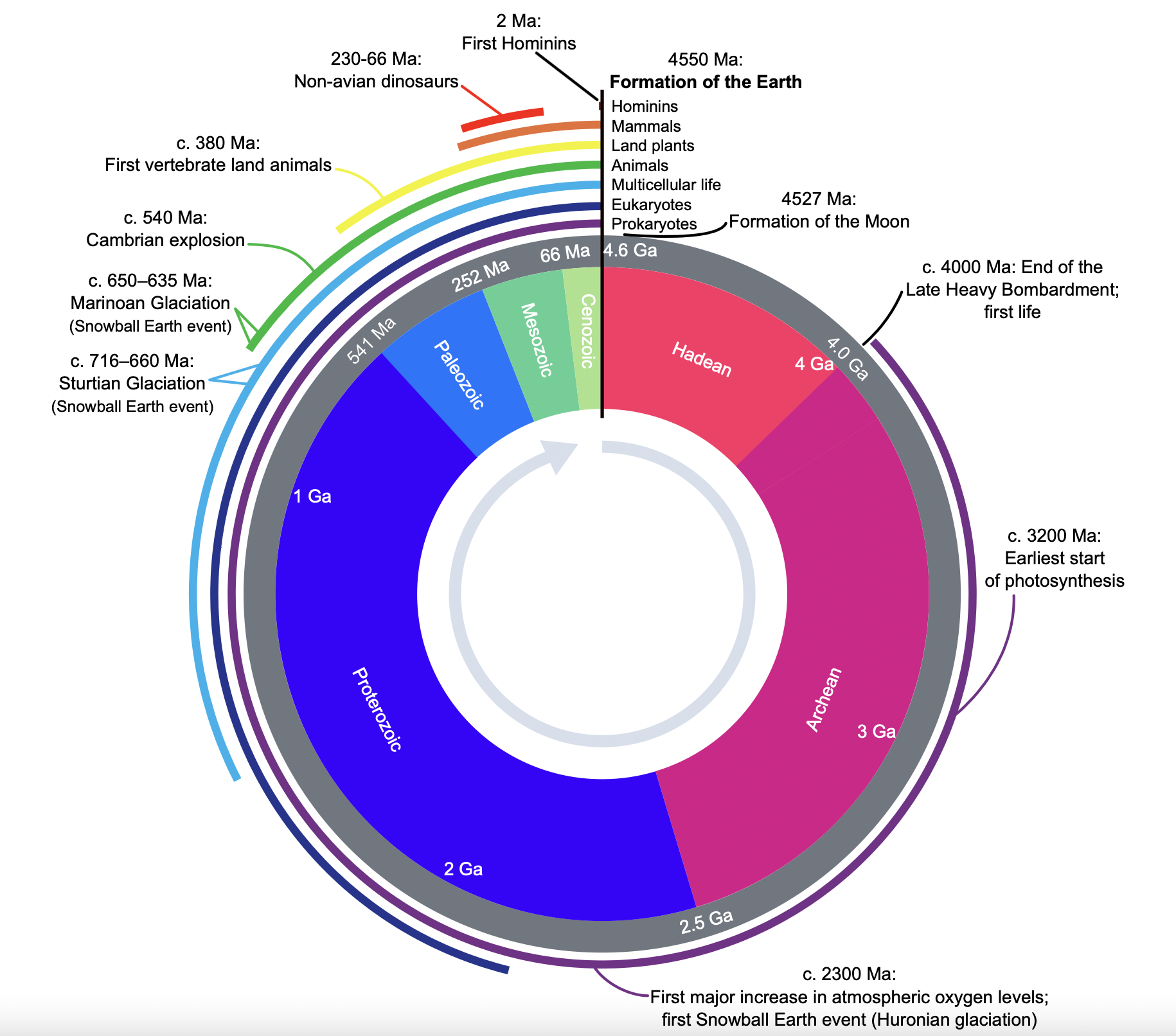

  1. Earth declares its independence about 4600 MYA
WoudloperDerivative work: Hardwigg, Public domain, via Wikimedia Commons
WoudloperDerivative work: Hardwigg, Public domain, via Wikimedia Commons
  1. First photosynthetic bacteria 3.4 billion years ago (BYA)
  • Used sunlight for energy to create biomass
  • Anaerobic (anoxic photosynthesis)

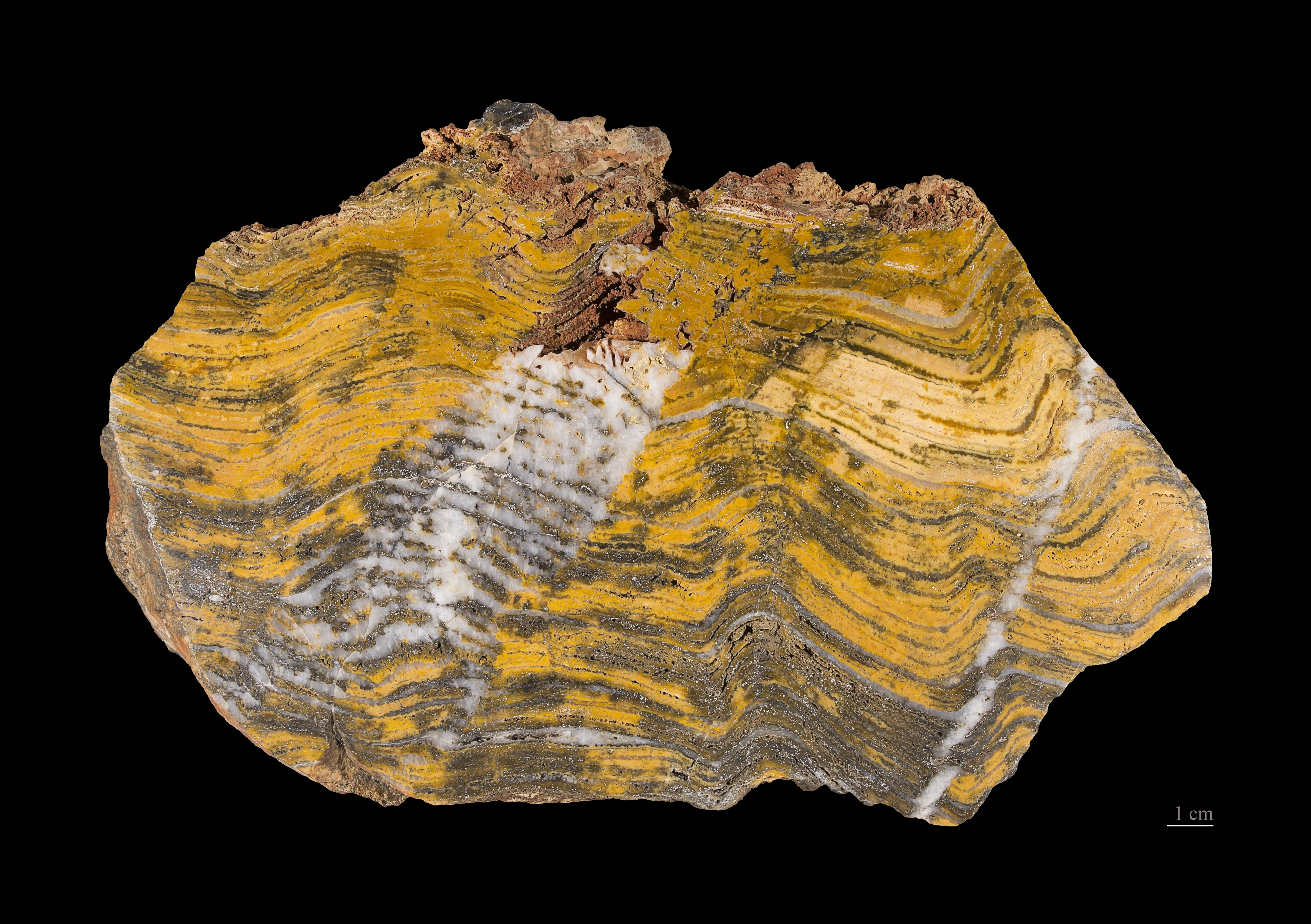

Muséum de Toulouse, CC BY-SA 4.0 https://creativecommons.org/licenses/by-sa/4.0, via Wikimedia Commons
Muséum de Toulouse, CC BY-SA 4.0 https://creativecommons.org/licenses/by-sa/4.0, via Wikimedia Commons

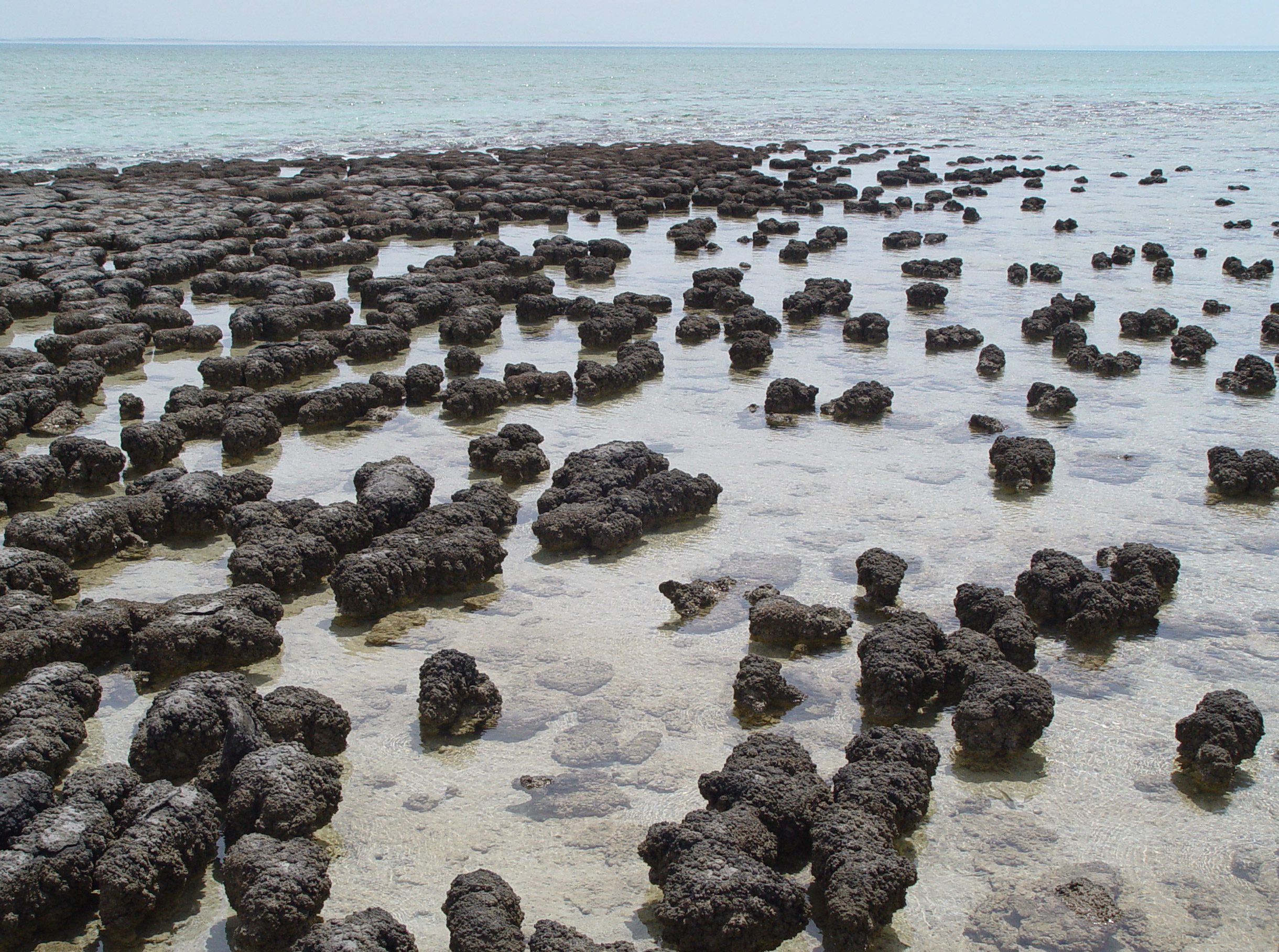

Modern Stromatolites. Photo taken in March 2005 by Paul Harrison (Reading, UK) using a Sony CyberShot DSC-H1 digital camera.
Modern Stromatolites. Photo taken in March 2005 by Paul Harrison (Reading, UK) using a Sony CyberShot DSC-H1 digital camera.
  1. 2.7 BYA first oxygen producers emerge
  • Oxygen as waste product during respiration
  • Most of the oxygen was sequestered and not readily available
  1. 2.3 BYA atmosphere has oxygen
  2. 500 million year ago (MYA) first terrestrial plants
  3. 200 MYA mammals emerged
  4. 13 MYA one of us makes all of us proud by learning how to fly
  5. 10 MYA the branch of life currently called homo emerges
  6. 400 years ago humans observe the first microbe under a simple scope

THERE WOULD BE NO LIFE WITHOUT MICROBES

3.1.1 Microbes enable habitability on Earth by catalyzing reactions of biogeochemical cycles

  1. The amount or % of elements on Earth remains constant
  2. Recycling of these elements, flux, and bio-availability is largely taken care of by microbes

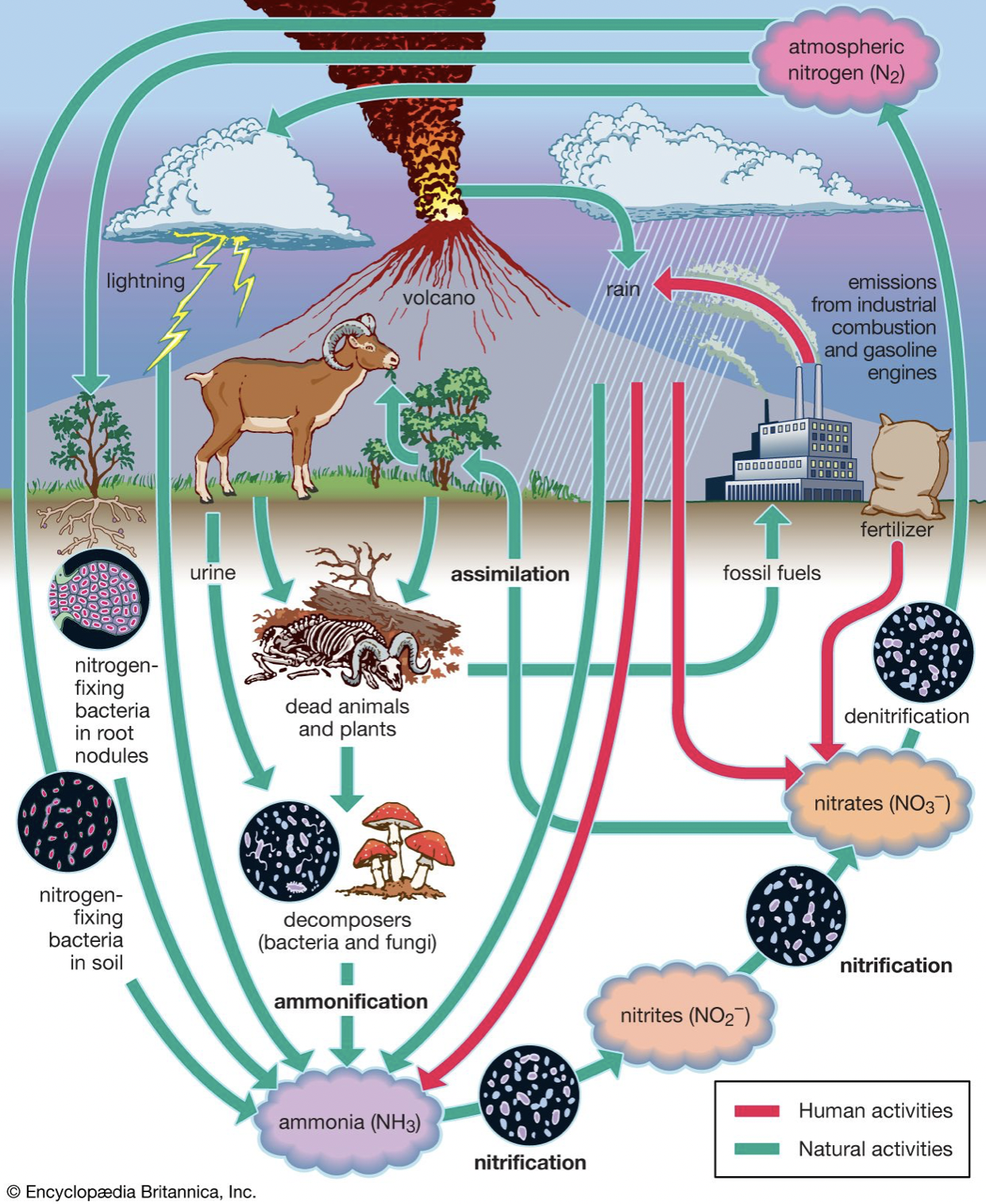

  3. Best example to illustrate – nitrogen
  • 78% of Earths atm is N2
  • Required for important biological processes
  • In gaseous form it is unavailable
  • In fact many processes are N2 limited
  • Making N2 bioavailable in a form that can be by eukaryotes is completely on the shoulders of microbes

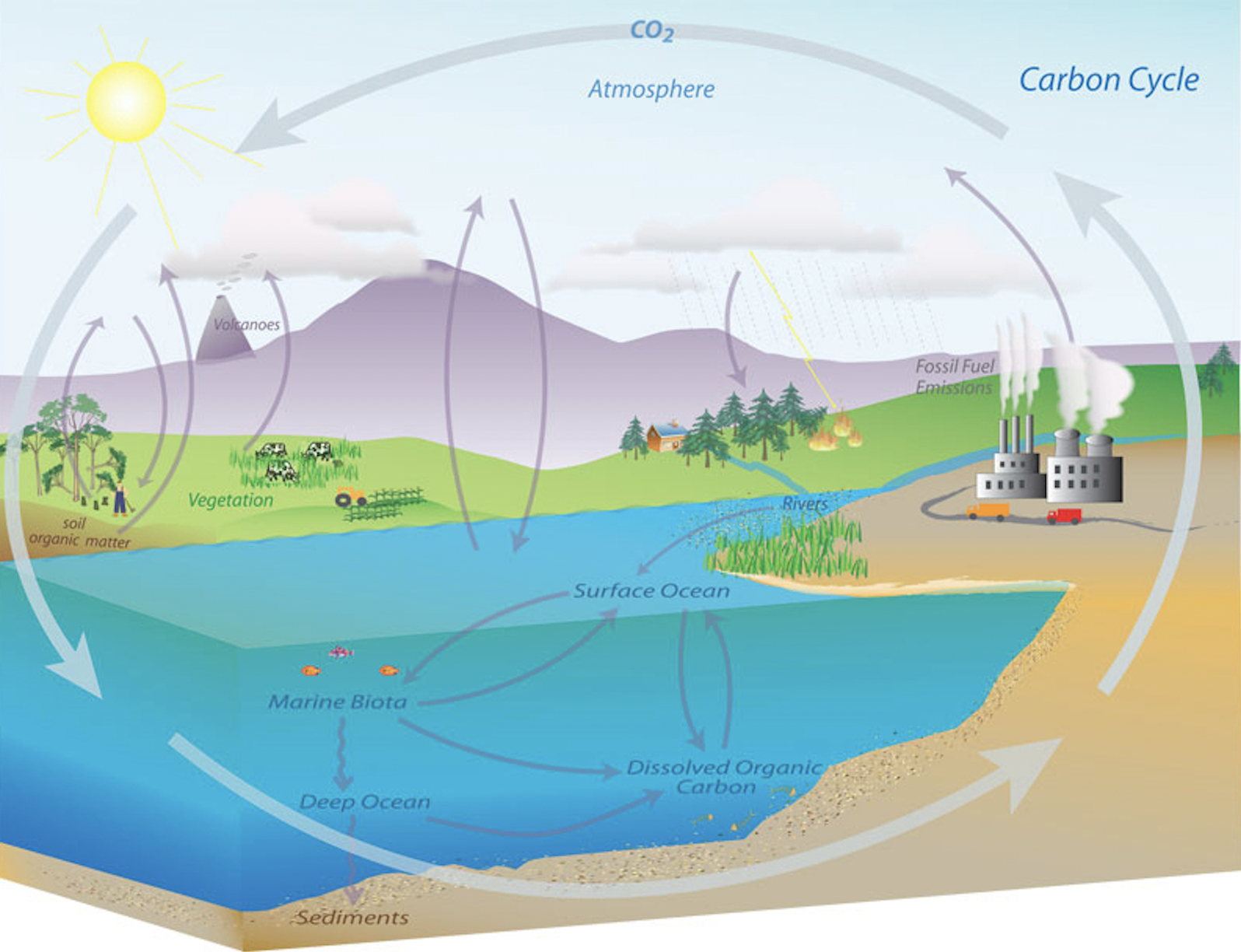

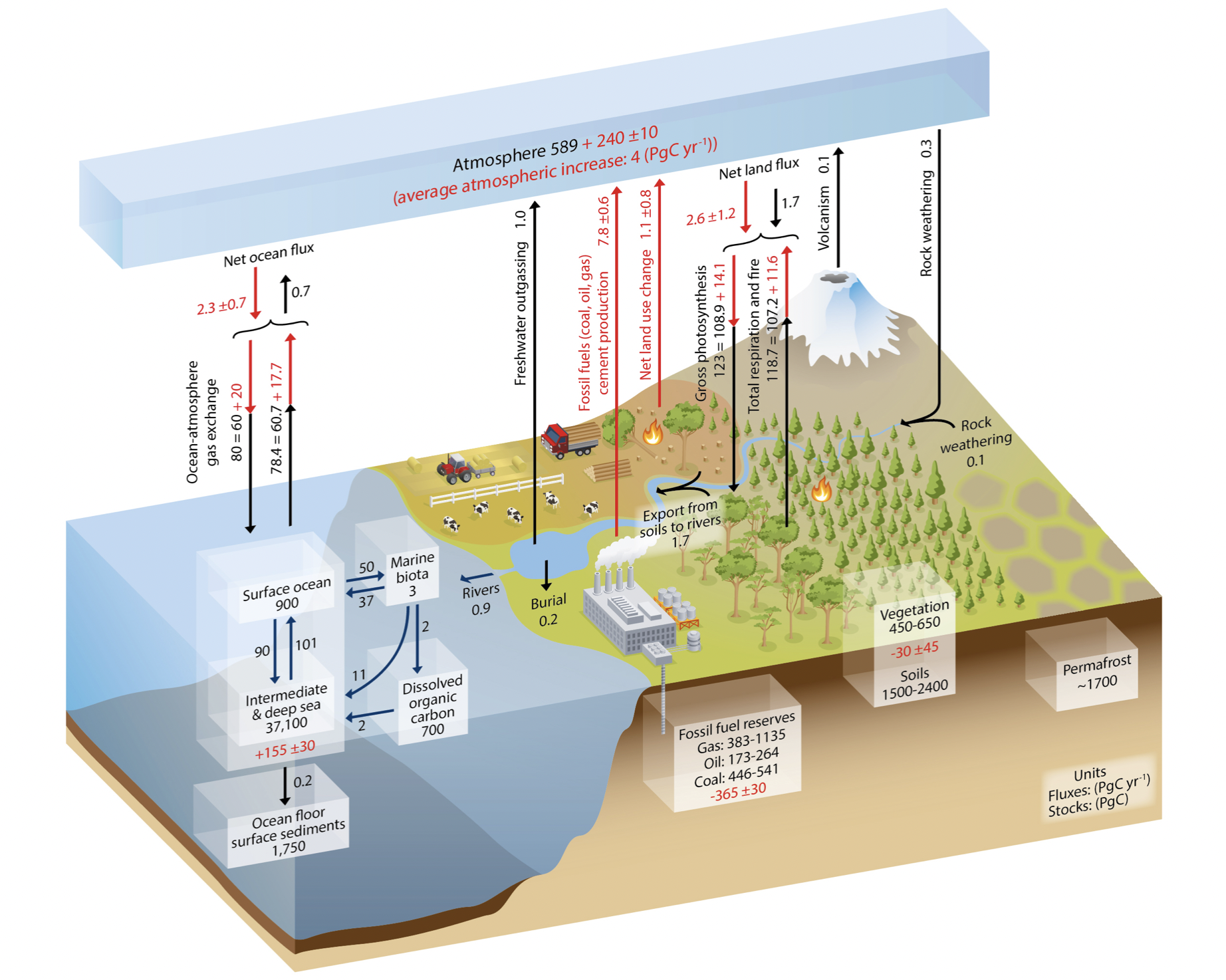

3.1.1.2 Carbon Cycle

Carbon Cycle
Carbon Cycle
Carbon Cycle
Carbon Cycle

https://www.pmel.noaa.gov/co2/story/Carbon+Cycle

How many microbes??

  1. 40 million microbes in a gram of soil
  2. One million microbes in a ml of fresh water
  3. One trillion in a human body

MICROBES ARE ABUNDANT……AND EXTREMELY DIVERSE!

3.2 How many kinds of living beings are there?

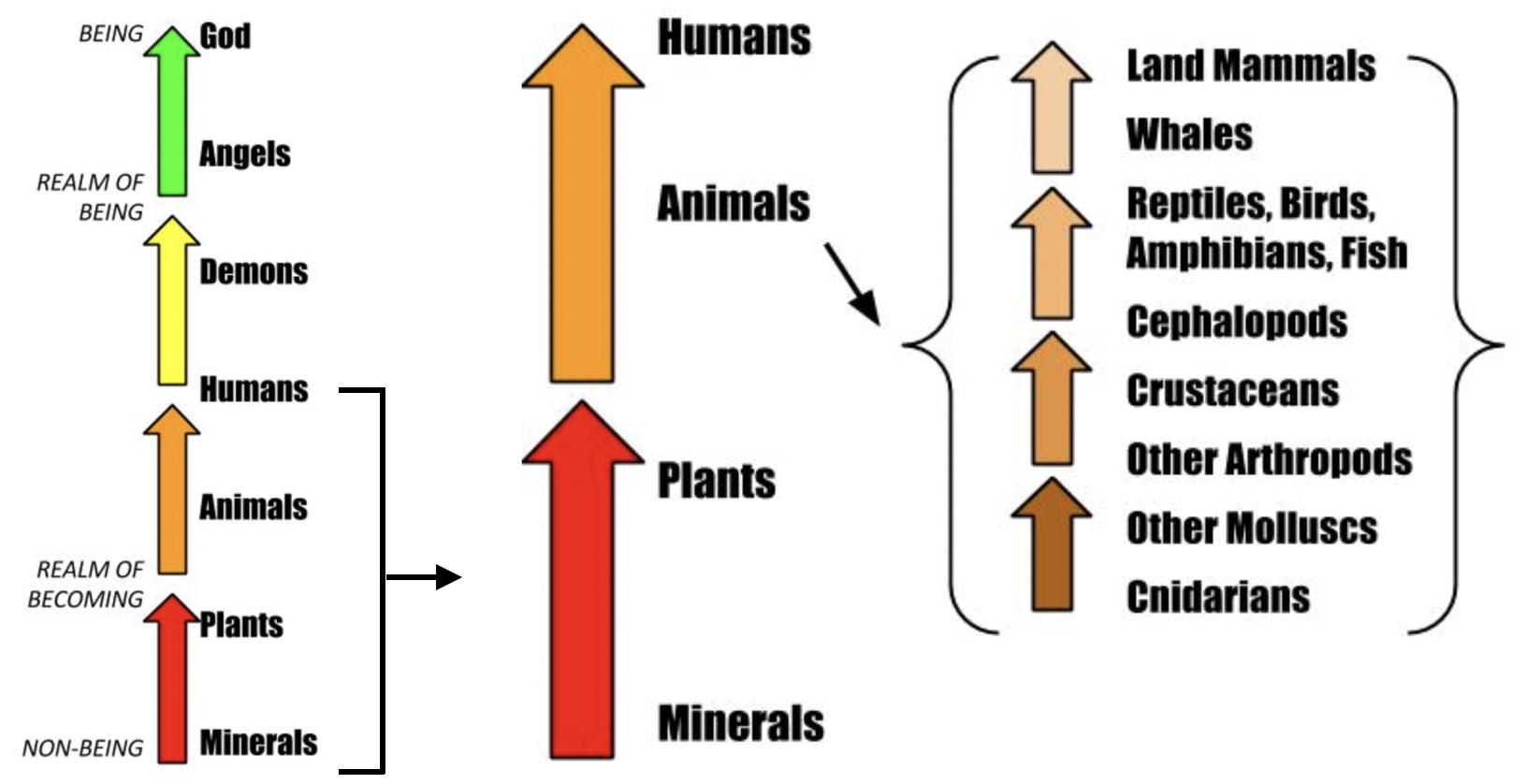

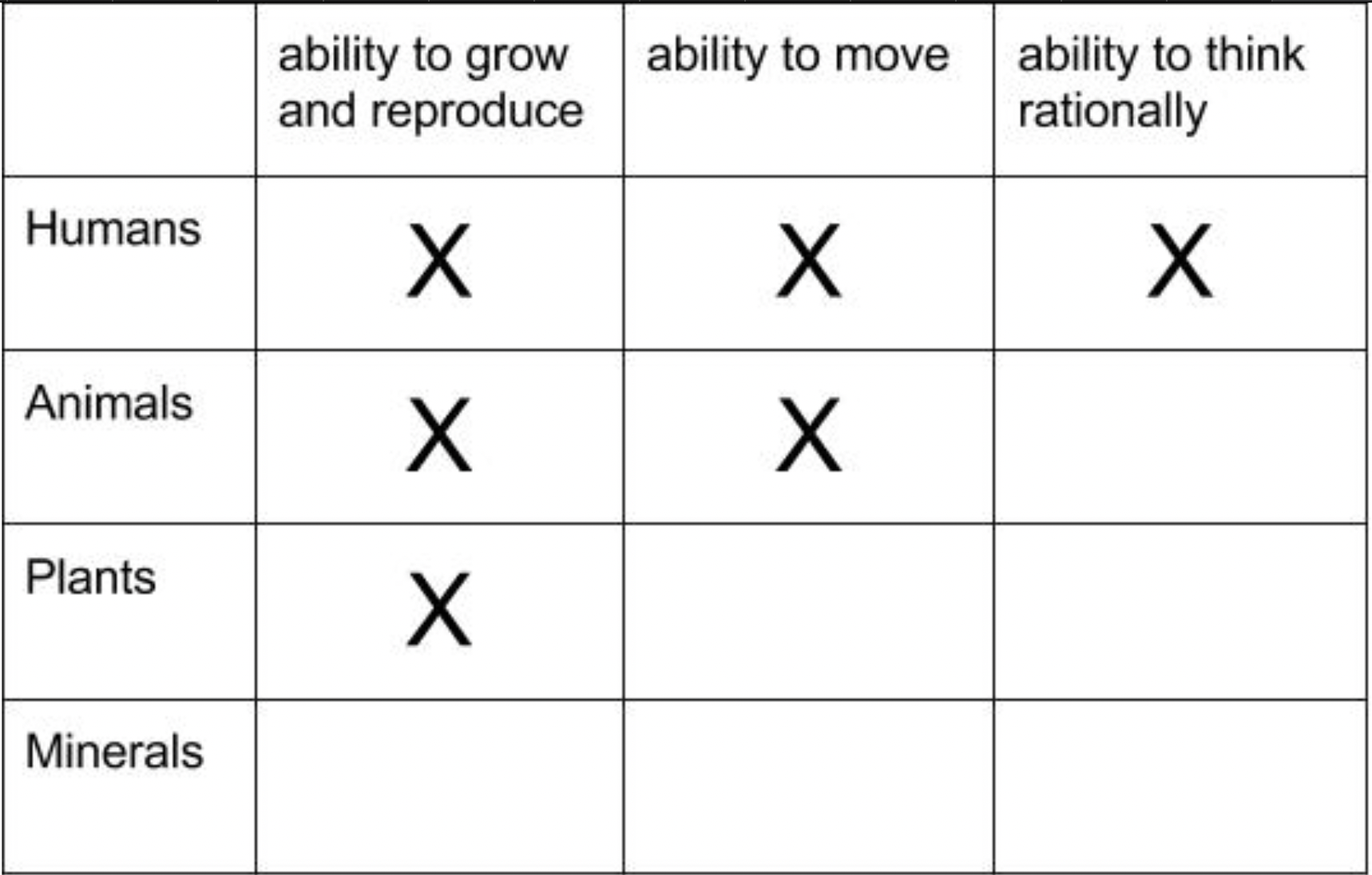

  1. Aristotle’s Scala naturae = 350 BC

Scala Naturae Scala Naturae

https://sites.google.com/site/aristotlethebiologist/aristotle-s-biology/great-chain-of-being

Ladder of Ascent and Descent of the Mind, 1305
Ladder of Ascent and Descent of the Mind, 1305

https://upload.wikimedia.org/wikipedia/commons/e/e9/Die_Leiter_des_Auf-_und_Abstiegs.jpg

2000 yrs later

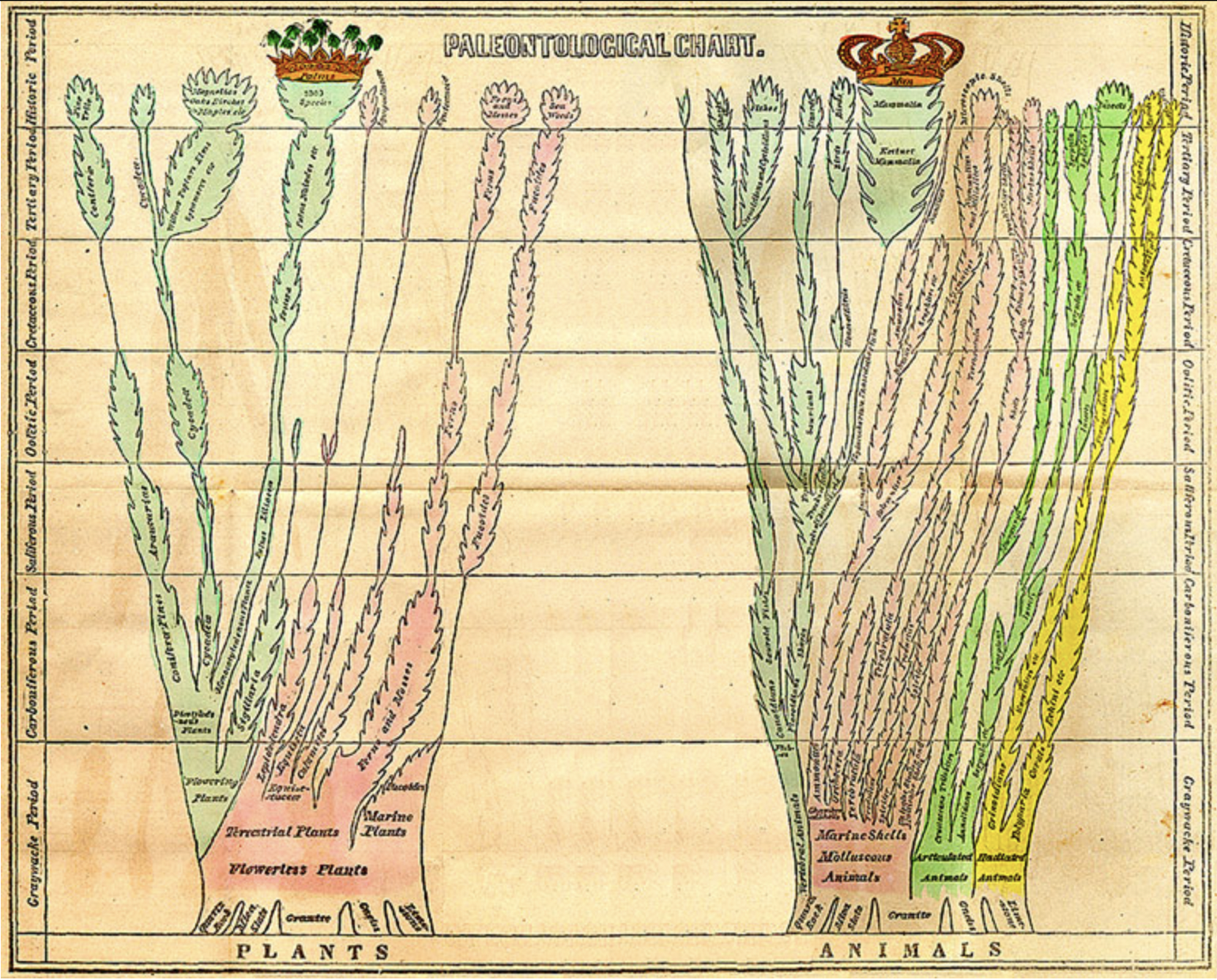

  1. Edward Hitchcock
    • 1840
Tree of Life
Tree of Life

https://upload.wikimedia.org/wikipedia/commons/8/8f/Edward_Hitchcock_Paleontological_Chart.jpg

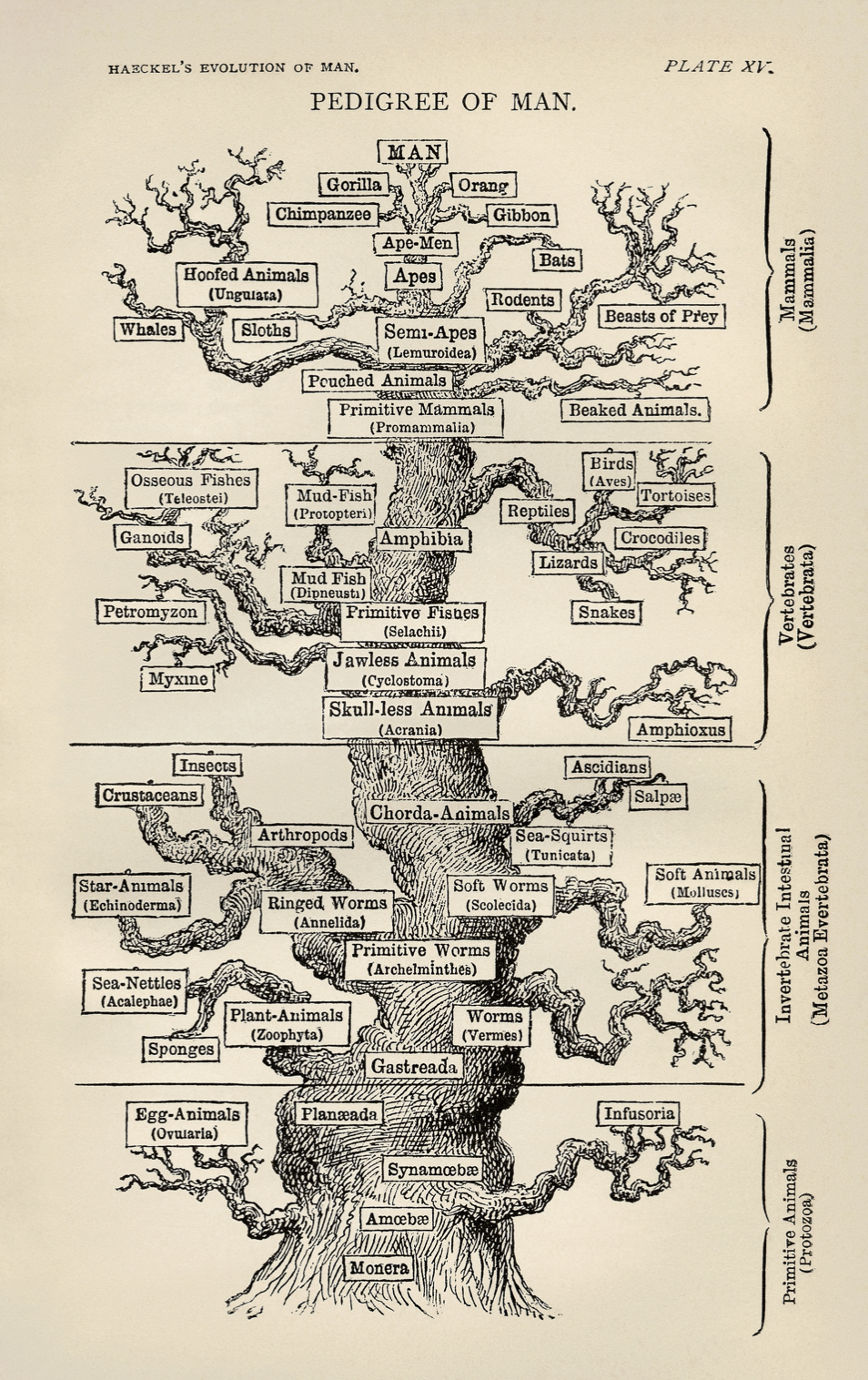

  1. Ernst Haeckel
    • 1879
Another Tree of Life
Another Tree of Life

https://upload.wikimedia.org/wikipedia/commons/d/de/Tree_of_life_by_Haeckel.jpg

  1. Charles Darwin
    • 1837
    • The idea that species could have evolved from an ancestor
    • This could have happened through transmutations
    • Premise for trees today
    • ALL METHODS DEPEND ON OBSERVABLE MORPHOLOGICAL TRAITS FOR CATEGORIZATION
Tree of Life sketch
Tree of Life sketch

3.3 What happened when we found out about microbes?

Microbes
Microbes

https://hms.harvard.edu/news/diet-gut-microbes-immunity

Roadmap to where we are now with determining microbial diversity

  1. Leeuwenhoek
  • Father of microbiology
  • Late 1600’s
  • Microscope

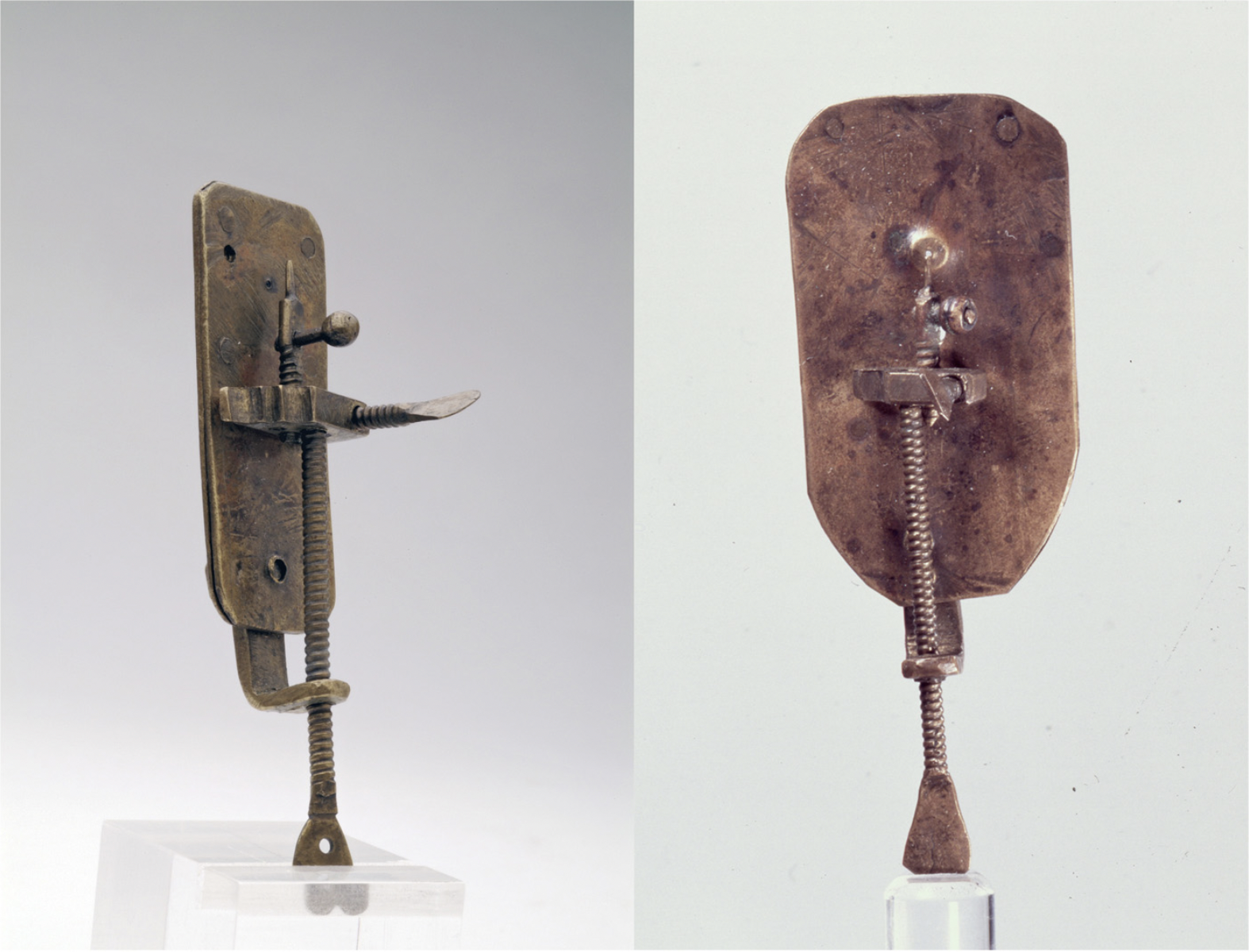

Original Microscope
Original Microscope
First Sketch of Microbes
First Sketch of Microbes
  1. Robert Koch
  • 1890
  • First time bringing microbes to the lab
  • Cultivation of microbes

Robert Koch Weiss, R. A. (2005). Robert Koch: the grandfather of cloning?. Cell, 123(4), 539-542.

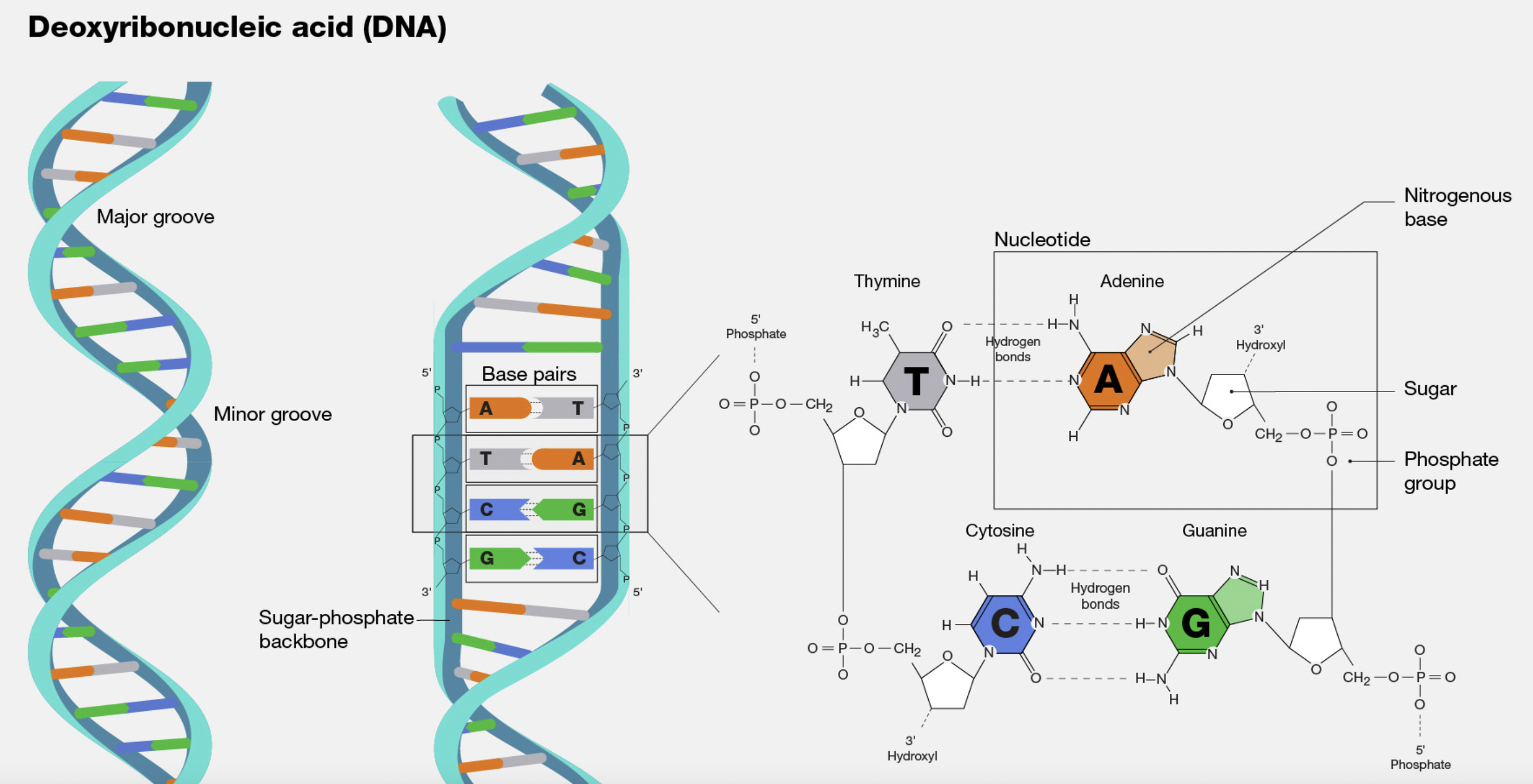

  1. Discovery of DNA structure
  • Rosiland Franklin
    • 1951
https://en.wikipedia.org/wiki/Rosalind_Franklin#/media/File:Rosalind_Franklin_(1920-1958).jpg
https://en.wikipedia.org/wiki/Rosalind_Franklin#/media/File:Rosalind_Franklin_(1920-1958).jpg
— J. D. Bernal, 1958. Franklin’s X-ray diagram of the B form of sodium thymonucleate (DNA) fibres, published in Nature on 25 April 1953, shows “in striking manner the features characteristic of helical structures”
— J. D. Bernal, 1958. Franklin’s X-ray diagram of the B form of sodium thymonucleate (DNA) fibres, published in Nature on 25 April 1953, shows “in striking manner the features characteristic of helical structures”

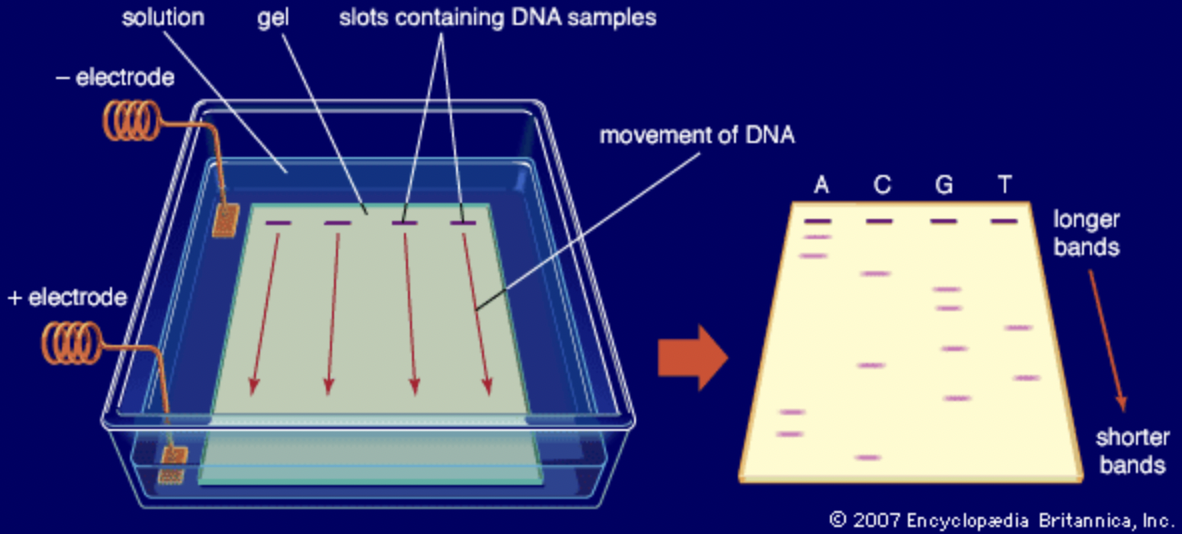

  • Frederick Sanger
    • 1975
https://www.britannica.com/science/DNA-sequencing#/media/1/422006/40224
https://www.britannica.com/science/DNA-sequencing#/media/1/422006/40224
  • Carl Woese
    • 1977
    • Archaea

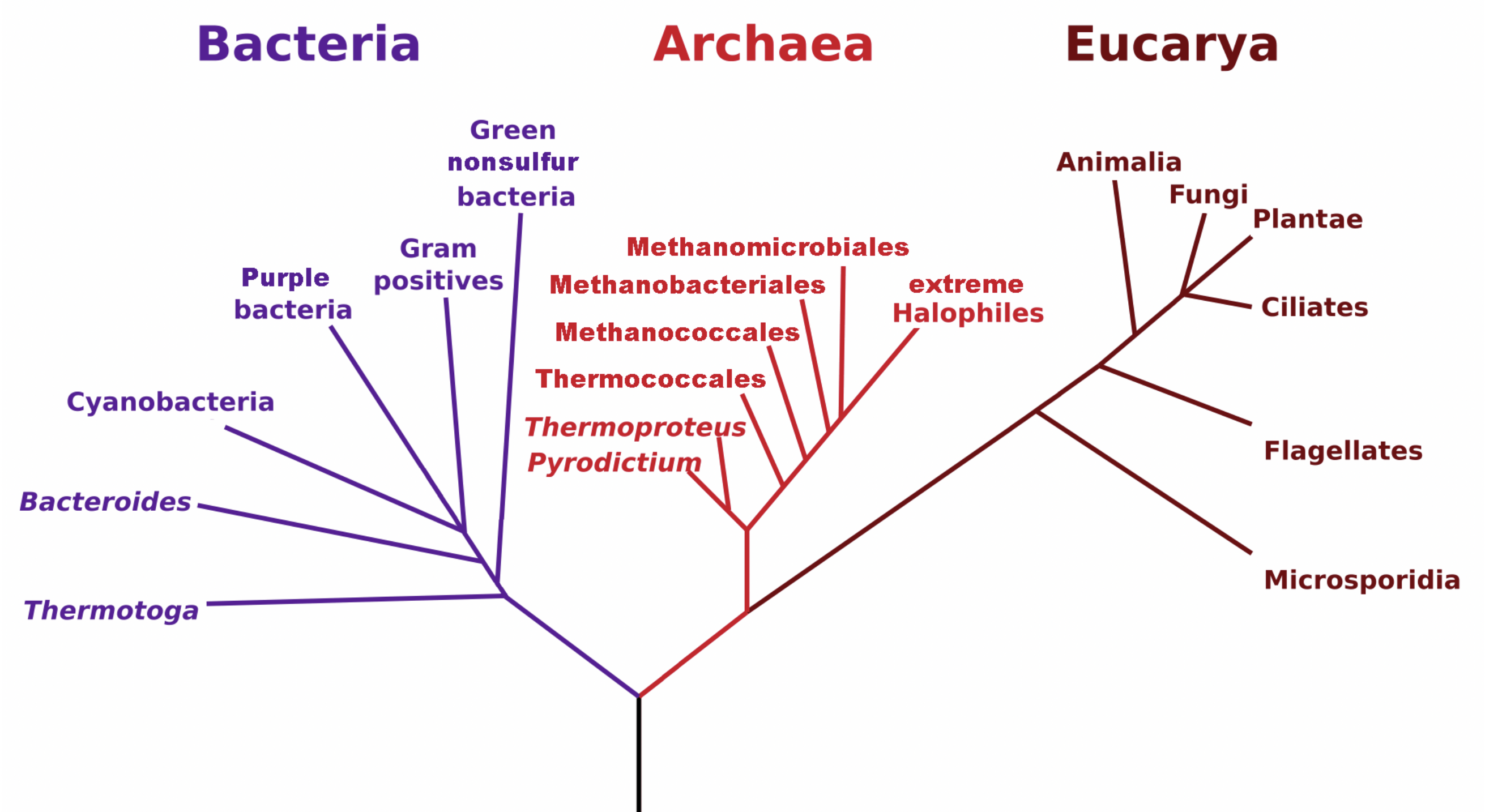

    • Phylogenetic tree based on Woese et al. rRNA analysis. The vertical line at bottom represents the last universal common ancestor (LUCA).
Maulucioni, CC BY-SA 3.0 https://creativecommons.org/licenses/by-sa/3.0, via Wikimedia Commons
Maulucioni, CC BY-SA 3.0 https://creativecommons.org/licenses/by-sa/3.0, via Wikimedia Commons

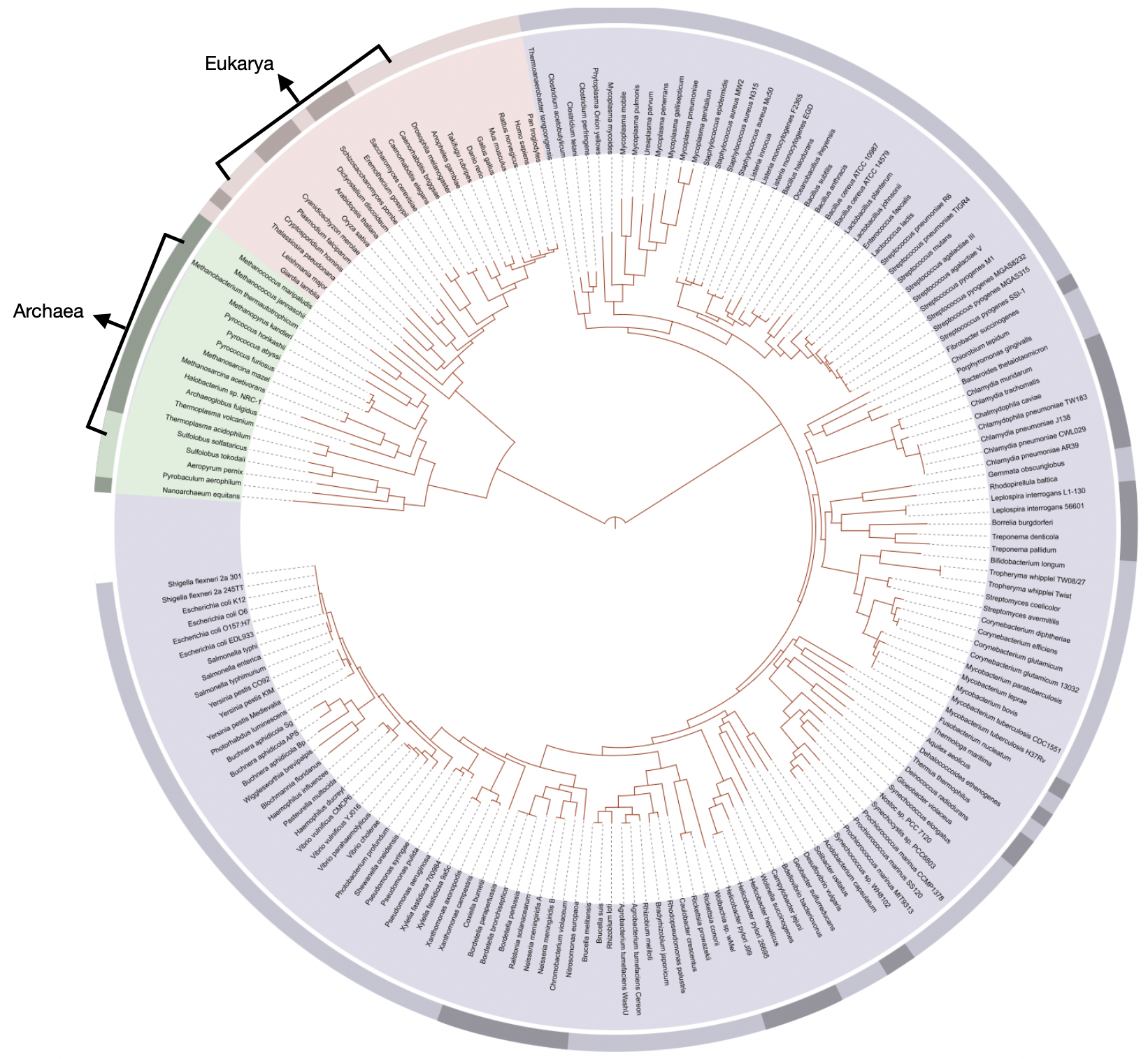

3.4 Tree of Life

Ivica Letunic: Iletunic. Retraced by Mariana Ruiz Villarreal: LadyofHats, Public domain, via Wikimedia Commons
Ivica Letunic: Iletunic. Retraced by Mariana Ruiz Villarreal: LadyofHats, Public domain, via Wikimedia Commons

“Visible organisms represent the smallest sliver of life’s diversity. Bacteria are the true lords of the world. They have been on this planet for billions of years and have irrevocably changed it, while diversifying into endless forms most wonderful and most beautiful.” (The Atlantic)

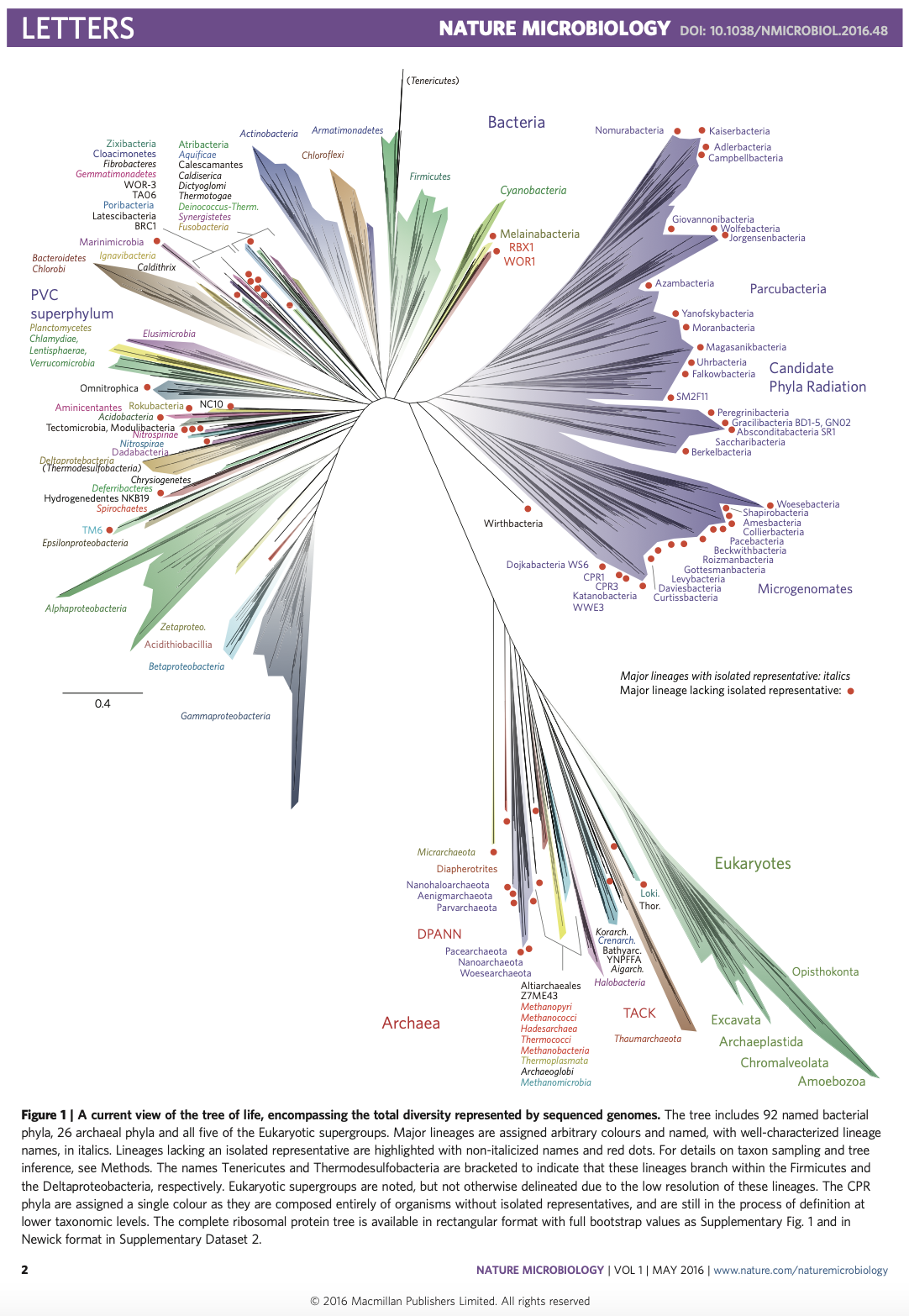

Life just got weird!

Hug, L. A., Baker, B. J., Anantharaman, K., Brown, C. T., Probst, A. J., Castelle, C. J., … & Banfield, J. F. (2016). A new view of the tree of life. Nature microbiology, 1(5), 1-6.
Hug, L. A., Baker, B. J., Anantharaman, K., Brown, C. T., Probst, A. J., Castelle, C. J., … & Banfield, J. F. (2016). A new view of the tree of life. Nature microbiology, 1(5), 1-6.

3.5 What Makes Microbes so Special?

  1. -15oC/4oF to 130oC/266oF temperatures
  2. 0 to 12.8 pH acidity
  3. More than 200 atm pressure
  4. 4 miles deep into Earth’s crust
  5. Up to 5kGy radiation

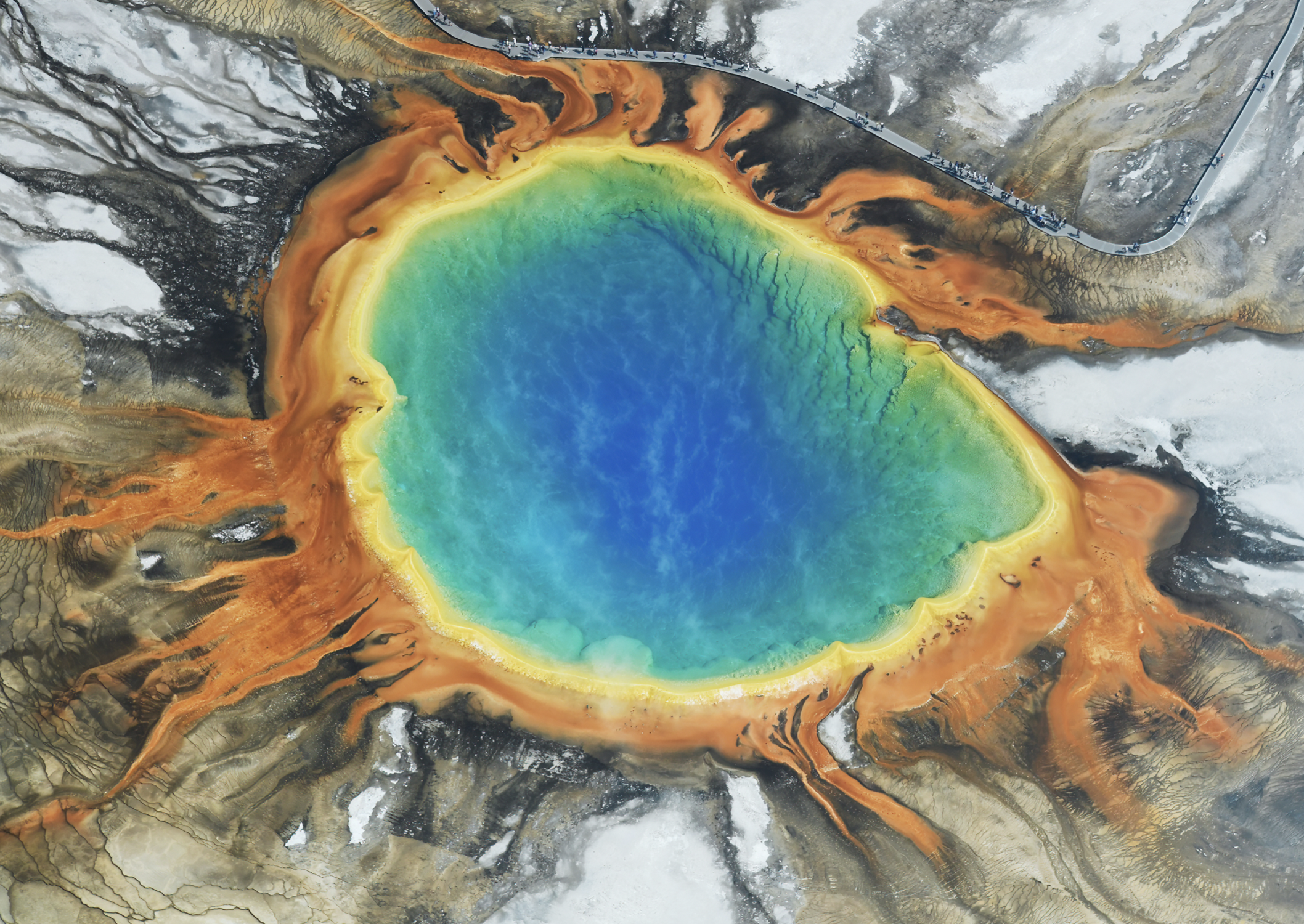

Grand Prismatic Spring – YNP – 183oC

  1. Validates the importance of microbes and sums up life on Earth with boundaries.
Carsten Steger, CC BY-SA 4.0 https://creativecommons.org/licenses/by-sa/4.0, via Wikimedia Commons
Carsten Steger, CC BY-SA 4.0 https://creativecommons.org/licenses/by-sa/4.0, via Wikimedia Commons

  1. Microbes are constantly trying to evolve and get deeper and deeper into the hot springs

  2. Eukaryotes only surround this spring – cannot survive close to the hot spring

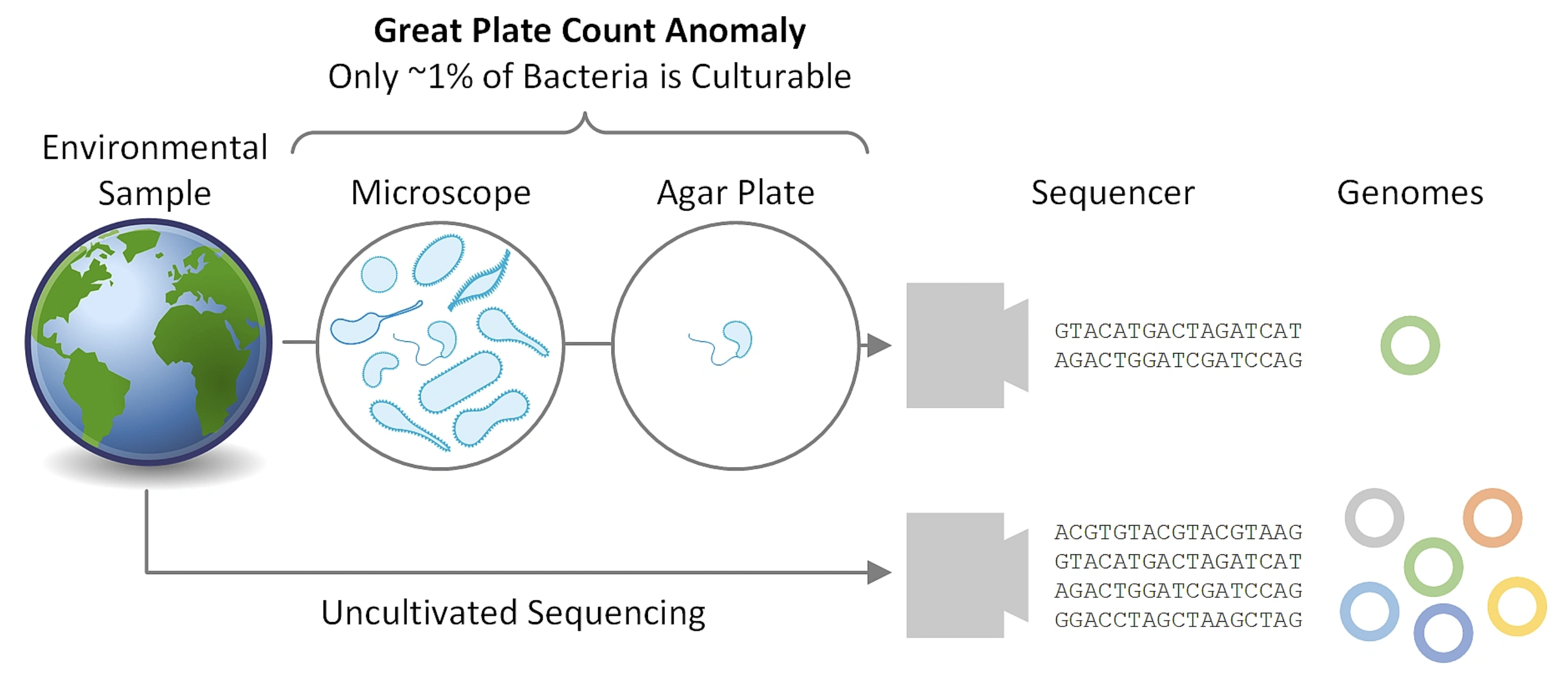

3.5.1 The great “plate count” anomaly

  1. Cultivation based cell counts are orders of magnitude lower than direct microscopic observation
Parks, D. H., Rinke, C., Chuvochina, M., Chaumeil, P. A., Woodcroft, B. J., Evans, P. N., … & Tyson, G. W. (2017). Recovery of nearly 8,000 metagenome-assembled genomes substantially expands the tree of life. Nature microbiology, 2(11), 1533-1542.
Parks, D. H., Rinke, C., Chuvochina, M., Chaumeil, P. A., Woodcroft, B. J., Evans, P. N., … & Tyson, G. W. (2017). Recovery of nearly 8,000 metagenome-assembled genomes substantially expands the tree of life. Nature microbiology, 2(11), 1533-1542.

  1. As microbiologists, we are able to cultivate only a small minority of naturally occurring microbes

  2. Our nucleic acid derived understanding of microbial diversity has rapidly outpaced our ability to culture new microbes

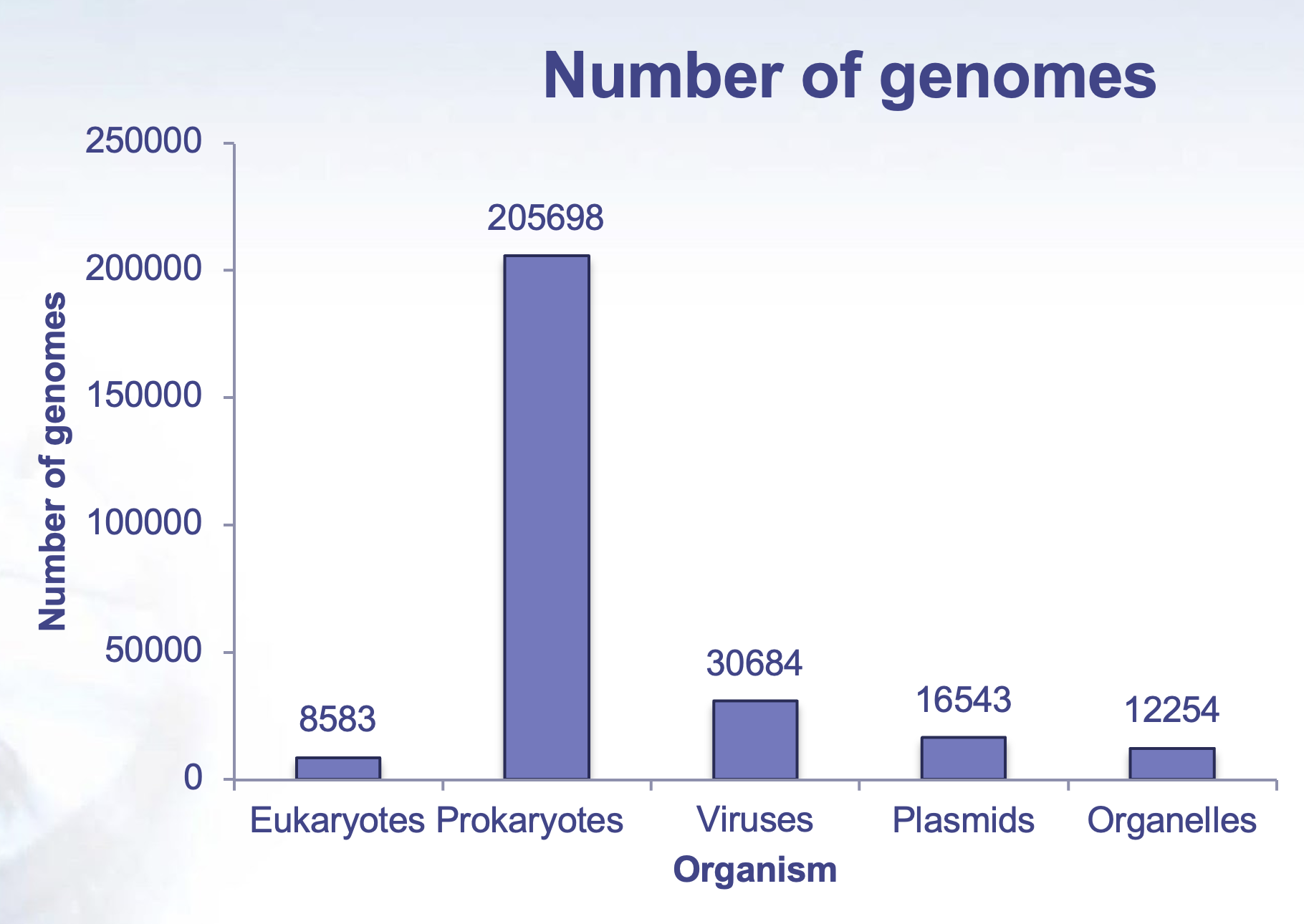

3.5.2 Total number of genomes at NCBI

Most Prokaryotes:

  1. Haploid genome
  2. Single circular chromosome, plasmids
  3. Metabolic diversity
  4. Genetic malleability
  5. No nucleus
  6. Easy interspecies gene transfer
Plate Count Anomaly
Plate Count Anomaly

https://www.ncbi.nlm.nih.gov/genome/browse/#!/overview/

3.6 Roadmap to Culture Independent Techniques

  1. rRNA as an evolutionary marker
  • 1977
  • (Woese and Fox, PNAS)
  1. Polymerase Chain Reaction
  • 1985
  • (K. Mullis, Science)
  1. “Universal Primers” for rRNA sequencing
  • 1985
  • (N. Pace, PNAS)
  1. PCR amplification of 16S rRNA gene
  • 1989
  • (Bottger, FEMS Microbiol)
  1. Curation and hosting of RDP
  • Early 1990’s
  • (rRNA database) FTP
  1. Term ‘microbiome’
  • 2001
  • coined by Lederberg and McCray

3.7 Microbiomes and their significance

  • Microbes do not work or function as a single entity
  • Most microbial activities are performed by complex communities of microorganisms
    • Microbiome

3.7.1 What is a microbiome

  1. Totality of microbes in a defined environment, and their intricate interactions with each other and the surrounding environment
  • A population of a single species is a culture(monoculture), extremely rare outside of lab and in some infections
  • A microbiome is a mixed population of different microbial species
  • MIXED COMMUNITY IS THE NORM!

3.7.2 Why Study Microbiomes

  1. Microbes modulate and maintain the atmosphere
  • Critical elemental cycles (carbon, nitrogen, sulfur, iron,…)
  • Pollution control, clean up fuel leaks
  1. Microbes keep us healthy
  • Protection from pathogens
  • Absorption/production of nutrients in the gut
  • Role in chronic diseases (obesity, Crohn’s/IBD, arthritis…)
  1. Microbes support plant growth and suppress plant disease
  • Most complex communities reside in soil
  • Crop productivity

3.7.3 Why is Microbiome Research New?

  1. Bias for microbes (especially pathogens) that are cultivable
  • Culture-based methods do not detect majority of microbes
  • Only pathogens are easily detected
  • And most microbes are not pathogens
  1. Availability of tools
  • Discovery of culture independent techniques
  • Amplicon sequencing and DNA sequencing

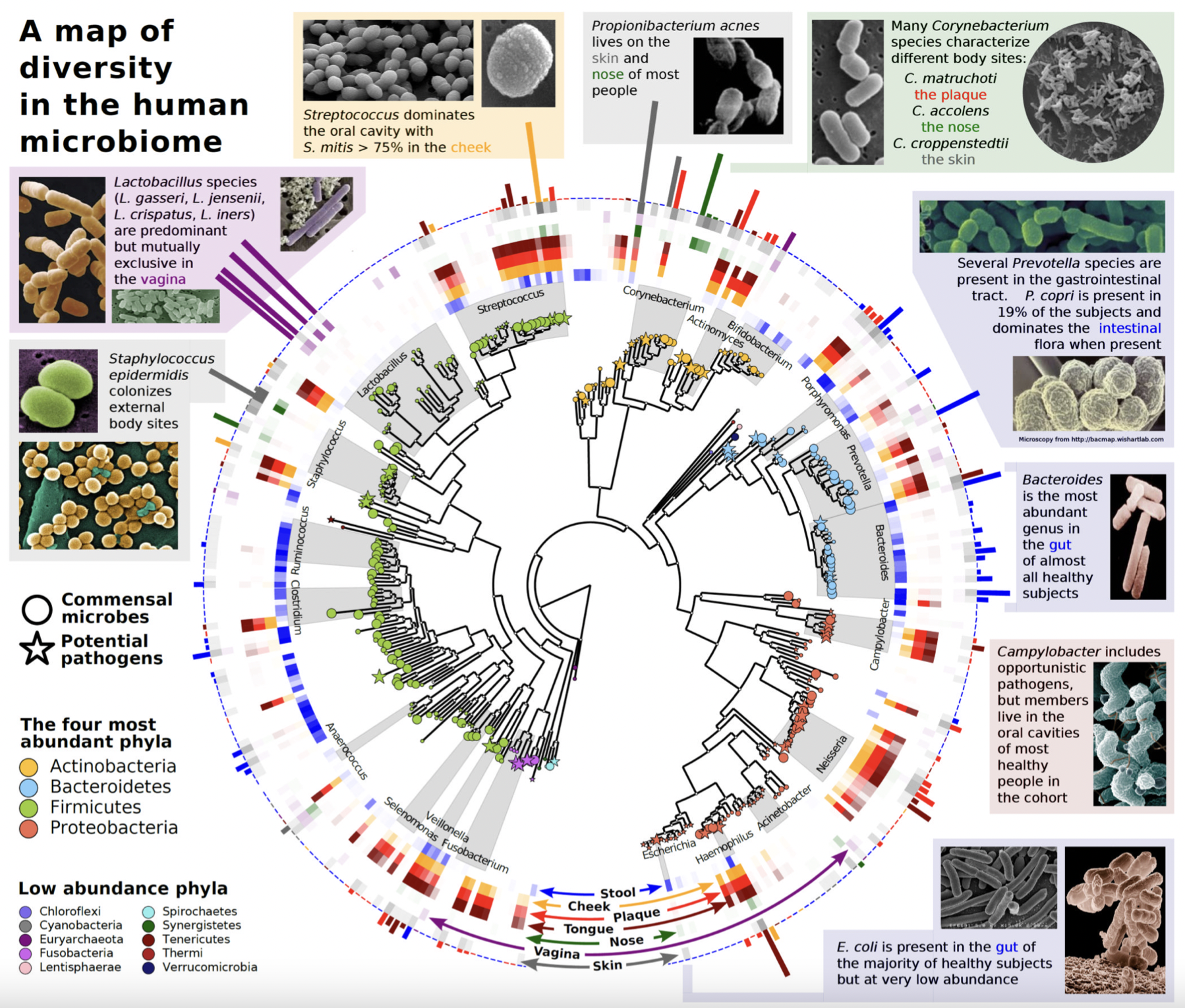

Morgan, X. C., Segata, N., & Huttenhower, C. (2013). Biodiversity and functional genomics in the human microbiome. Trends in genetics, 29(1), 51-58.
Morgan, X. C., Segata, N., & Huttenhower, C. (2013). Biodiversity and functional genomics in the human microbiome. Trends in genetics, 29(1), 51-58.

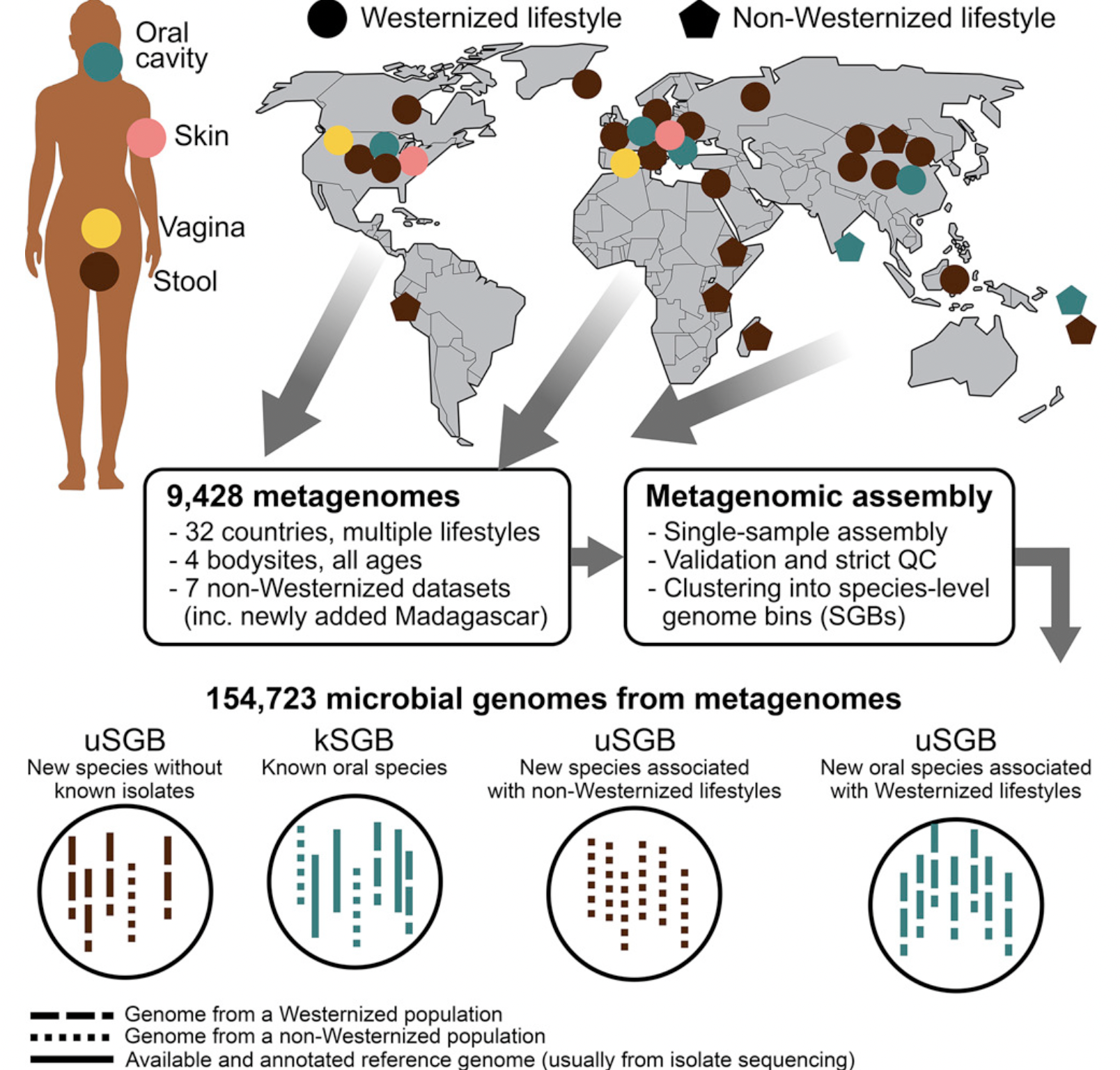

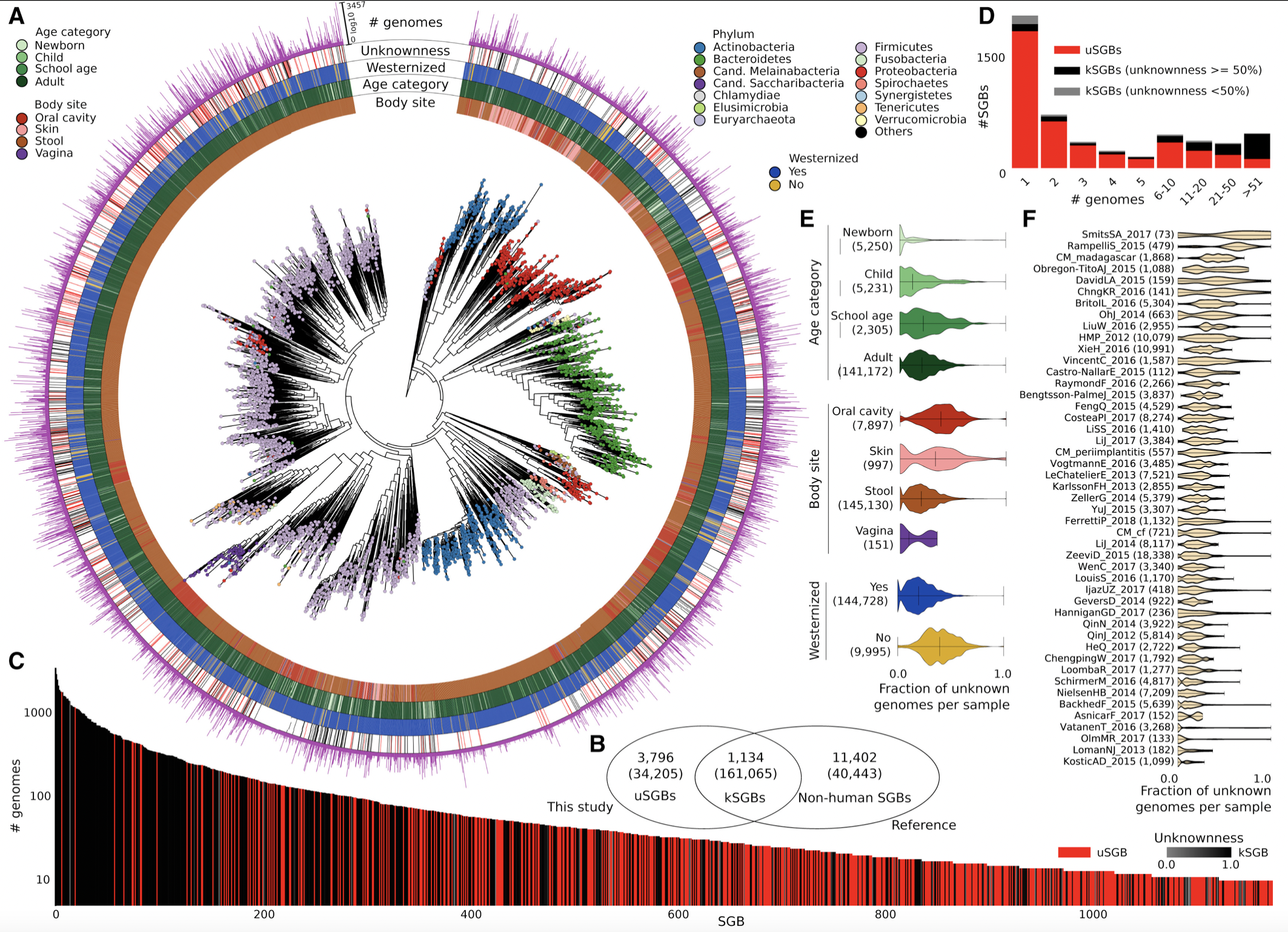

3.7.4 Biodiversity and functional genomics in the human microbiome

Pasolli, E., Asnicar, F., Manara, S., Zolfo, M., Karcher, N., Armanini, F., … & Segata, N. (2019). Extensive unexplored human microbiome diversity revealed by over 150,000 genomes from metagenomes spanning age, geography, and lifestyle. Cell, 176(3), 649-662. Pasolli, E., Asnicar, F., Manara, S., Zolfo, M., Karcher, N., Armanini, F., … & Segata, N. (2019). Extensive unexplored human microbiome diversity revealed by over 150,000 genomes from metagenomes spanning age, geography, and lifestyle. Cell, 176(3), 649-662.

  1. Recovered over 150,000 microbial genomes from ~10,000 metagenomes

  2. 70,178 genomes assembled with higher than 90% completeness

  3. 3,796 SGBs (species-level genome bins) identified -77% of the total representing species without any publicly available genomes

3.7.5 Microbiome Projects and Databases

  1. American Gut Project
  2. Earth microbiome Project
  3. Human Oral Microbiome Database
  4. CardioBiome
  5. Human Microbiome Studies – JCVI
  6. MetaSub – Metagenomics and metadesign of Subways and Urban Biomes
  7. Gut microbiota for Health
  8. NASA: Study of the impact of long term space travel in the Astronaut’s microbiome
  9. Michigan microbiome project
  10. Coral microbiome project
  11. Seagrass microbiome project
